PVC-U Soil & Waste System

Marley PVC-U soil pipes & fittings

The core above-ground system: push-fit and solvent-weld soil pipe and fittings in light grey (RAL 7035/7037), engineered for high-rise stack performance and fast installation. Manufactured at KEZAD, Abu Dhabi to BS EN 1329-1.

PVC-U Soil & Waste System

82mm – 200mm

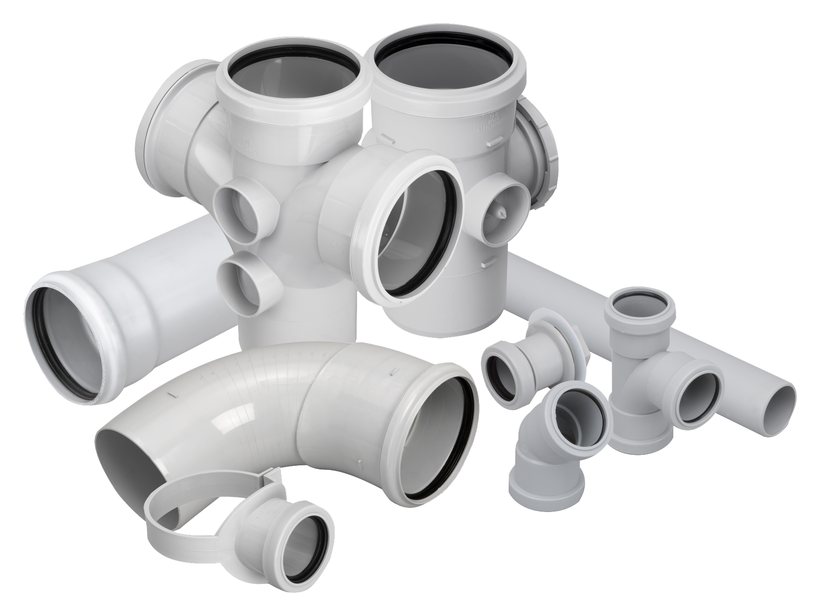

Push-Fit Soil PVC-U82, 110, 160 & 200mm ring-seal pipe, bends, branches, access fittings
Solvent Soil PVC-USolvent-weld soil range for cast-in and riser applications
200mm Push-Fit SoilLarge-bore stacks for towers and infrastructure
Floors & Flat Roof OutletsPVC-U floor outlets and rainwater roof outlets
Active DrainageAir admittance valves and stack ventilation solutions
AccessoriesStrap bosses, weathering slates, brackets & supports
Standards: BS EN 1329-1 — BSI Kitemark KM 794709 (fittings) & KM 836152 (pipes)

Sizes and jointing

Soil pipe is supplied in 82, 110, 160 and 200mm. Push-fit ring-seal joints absorb thermal movement and are the usual choice for stacks; solvent weld gives a rigid joint for cast-in and concealed riser work. Both jointing methods are available across the range, and the fittings are dimensionally compatible.

Where it is used

Discharge stacks and branch pipework in villas, residential towers, hotels and commercial buildings — carrying soil discharge from WCs and urinals, and acting as the ventilating stack above the highest connection.

Installation notes

Support centres, expansion allowance and jointing sequence are set out in the GCC technical manual. PVC-U expands with temperature, which matters in Gulf conditions: use ring-seal joints or purpose-made expansion sockets at the stated intervals.

Technical manual & datasheets Certification

Products in this range

PVC-U Soil Pipe82, 110, 160 & 200mmSoil Bendspipe bend, elbow, knuckle bendSingle Branch / Y-BranchY branch, single branch, teeDouble Branchdouble branch, cross, double YAccess Fittingsaccess pipe, access bend, rodding accessSockets, Couplers & Reducersdouble socket, slip couplerStrap Boss & Boss Connectorsboss connector, boss adaptorVent Cowls & Air Admittancevent cowl, vent terminal

Frequently asked

What size soil pipe is used in UAE buildings?
110mm is the standard soil stack size for residential and most commercial work, with 160mm and 200mm used for larger stacks and high-rise applications. 82mm is used for smaller branch runs.
Is Marley soil pipe push-fit or solvent weld?
Both. The same range is available with push-fit ring-seal joints and as a solvent-weld system, and the fittings are dimensionally compatible.
Which standard does the soil range meet?
BS EN 1329-1, with BSI Kitemark licences KM 794709 for fittings and KM 836152 for pipes held at the Abu Dhabi plant.
